Single Output Configurable Grid/Solar Input Priority SPF 5KT HVM Off-Grid Storage Inverter

Name: Single Output Configurable GridSolar Input Priority SPF 5KT HVM OffGrid Storage Inverter
Brand: Growatt
Price: 505.00 USD

Wholesale Single Output Configurable Grid/Solar Input Priority SPF 5KT HVM Off-Grid Storage Inverter from china suppliers

Place of Origin : Anhui, China

Brand Name : Growatt

Model Number : SPF 5KT HVM

Input Voltage : 230VAC

Output Voltage : 220V/230V/240VAC(+/-10% RMS)

Output Current : 50 A

Output Frequency : 50Hz/60Hz (Auto sensing)

Output Type : Single

Size : 360/540/218mm

Type : DC/AC Inverters

Inverter Efficiency : 85%

Certificate : SAA/CE/ROHS/ISO9001/CCC

Warranty : 10 Years

Weight : 41kg

Rated Power : 5KW

AC Voltage Regulation (Battery Mode) : 220V/230V/240VAC(+/-10% RMS)

Surge Power : 15KW

Efficiency (Peak) : 85%

Power Factor : 1.0

Transfer Time : 10ms typical,20ms Max

Protection Degree : IP20

Dimension (W/H/D) : 360/540/218mm

Net Weight (kgs) : 41kg

Operating Temperature : 0°C - 55°C

Price : $505.00/pieces 1-9 pieces

Contact Now

Product Description

Single Output Configurable Grid/Solar Input Priority SPF 5KT HVM Off-Grid Storage Inverter

Rated Power	5KW
Waveform	Pure sine wave/ same as input(bypass mode)
Nominal Output Voltage RMS	220V/230V/240VAC(+/-10% RMS)
Surge Power	15KW
Output Frequency	50Hz/60Hz +/-0.3 Hz
Inverter Efficiency(Peak)	>85%
Line Mode Efficiency	>95%
Power Factor	1.0
Transfer Time	10ms typical，20ms Max

Schematic Drawing

Application program

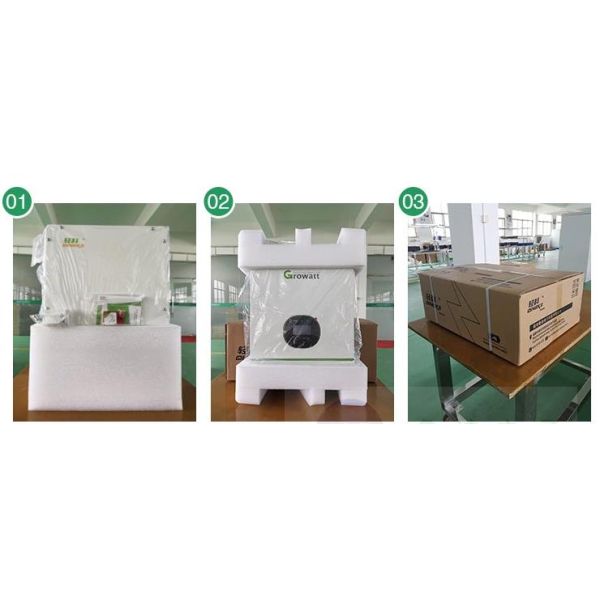

Packing & Delivery

Company Profile

Hefei Sunrise New Energy Co.,Ltd is a professional and fast growing company with more than 10 years experience in New energy field, located in Hefei city ,Anhui province .Our company is committed to high efficient and clean energy research and development, and bring quick & professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including Longi, Sungrow, Trina, JA, Canadian, Growatt, Goodwe, Sunrise provides not only solar panels and solar inverters,but also system integration for on-grid systems, off-grid systems, energy storage systems, etc.

Our products have been sold to many countries and regions in Europe, North America, the Middle East and South Africa,etc. also have got certificates of TUV, CE, CQC , etc .

To complete the most intimate cooperation, We will provide customers with the best quality products & service,and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation .

FAQ

1. What is your main products?
Our main products including Solar Panel, Inverter, Battery,Solar System, Mounting System and other related Solar Power
Accessories;

2. Are you a factory or trading company ?
We are a professional Solar energy products manufacturer in China with own factory and the advanced production line ,can ensure superior supply capacity.

3.How can you guarantee your product quality ?
We will provide a pre-production sample before mass production, Each product will after several inspection procedures before shipment;

4.Could you print our company logo in nameplate and package ?

Yes ,we can customized your logo according to your design and request;

5. What if I don't have export experience ?
We have reliable forwarder agent which can ship items to you by Sea/Air/Express to your seaport or doorstep.Anyway, we will help you choose the most suitable shipping service.

Single Output Configurable Grid/Solar Input Priority SPF 5KT HVM Off-Grid Storage Inverter Images
